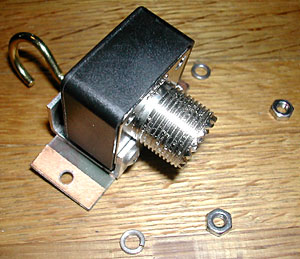

      OPTION 3: 50 OHM 1:1 BALUN, BRACKET, SUPPORT HOOK, and UHF,
                       SO-239 CONNECTOR $18.00 (MOST POPULAR)
      NOTE: ALL OPTIONS ARE FULLY ASSEMBLED.
      PRA-2 ANTENNA REQUIRES HARDWARE ASSEMBLY AND SOLDING 2 WIRES.
      LESS THAN 1 HR ASSEMBLY TIME.

SHIPPING:
      WITH ONE ANTENNA AND/OR ONE OPTION US PRIORTY MAIL
      IS $6.00 WITH 2-3 DAY DELIVERY ANYWHERE IN USA.
      FOR ELECTRONIC WEB-TRACKING ADD 50 CENTS.
      FOR UP TO $100 INSURANCE ADD $2.20
      FOR OTHER CARRIERS PLEASE CONTACT US.

ORDERING INFORMATION:
      PAY PAL ACCEPTED AND PREFERRED.
      LISTED UNDER MY EMAIL ADDRESS wa4ygg@yahoo.com
      PLEASE MAKE CHECKS PAYABLE TO STEVE HORTON AND MAIL TO
      STEVE HORTON, 611 FLAT ROCK RD SW. ROME, GA 30161.

PLEASE ALLOW 1 WEEK TO SHIP ORDER. THE ANTENNAS WILL BE SHIPPED ON A FIRST COME FIRST SERVE BASIS. I WILL NOT DEPOSIT YOUR CHECK UNTIL THE ANTENNA IS READY FOR SHIPMENT. IF THERE ARE ANY ADDITIONAL DELAYS WE WILL RESPOND WITH EMAILS.

Contact Us By Email For More Information



 Portable Reel Antenna

MODEL PRA2 Amateur Radio Antenna
  • Frequency Range: 80-6 meters
  • Wires Tagged: 80, 75, 60, 40, 30, 20, 17, 15, 12, 10 and 6 on each wire
  • Wire Standard: uninsulated no. 24ga.035" 19 strands tinned plated copper, high strength and very flexible
  • SWR 1.2:1 or less at resonance
  • Power Rating: 200 watts maximum with balun
  • Maximum Length In Feet: 134 @3.5mhz
  • Retracted Dimensions: 7.5x3x2.5 inches LxWxH
  • Weight: 9 ounces
  • Feedline Connection: coax or balanced line #6-32 / wing nuts
  • Impedance: 50 ohms
  • Hardware: stainless steel
  • Reels: molded plastic case



  • OPTION 1: Balun: 1:1, Comes with weather proof cover, PCB adapter, bracket and hook at with feed point female BNC connector.

  • OPTION 2: Comes with weather proof cover, PCB adapter, mounting bracket and hook with feed point female BNC connector.


Contact For Us Technical Support Or Order Status




Theory:

This design is an electrical 1/2 wavelength dipole antenna. The wire shorts out when inside the reel,  so that it does not form an inductor. This means that the operating frequency is determined by how far the wires are pulled out and secured.

The wires are labeled at 9 points along each wire for HF operation and the 6 meter VHF band. They are supported at the middle and the end of each wire.

The Model PRA2 can be configured as horizontal or inverted "V" type.
